Sta-Rite HP20H3-02 Booster Pump, 3 HP, 20 GPM, 80 PSI, Three Phase

Name: Sta-Rite HP20H3-02 Booster Pump, 3 HP, 20 GPM, 80 PSI, Three Phase
Brand: luxwashequiment
SKU: HP20H3-02
Price: 2347.34 USD
Availability: InStock

$2,347.34

$2,347.34 ~~$4,880.00~~

SAVE 51% Sold out

📦 Producto de alta calidad.

👨🏻‍💼 Soporte 24/7.

🚚 Envíos entre 24-72 horas.

Product variants

Quantity

Sta-Rite HP20H3-02 Booster Pump, 3 HP, 20 GPM, 80 PSI, Three Phase

$2,347.34

$2,347.34 ~~$4,880.00~~

SAVE 51% Sold out

ENVIOS ENTRE 24-72 HORAS.

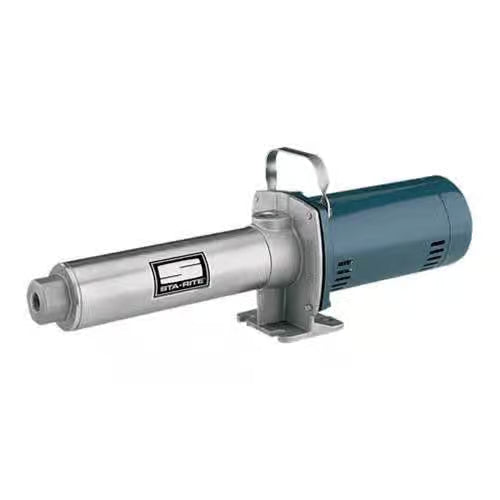

Sta-Rite HP20H3-02 Booster Pump

Durable booster pump for car wash, commercial, agricultural, pressure washing, filtration, reverse osmosis, HVAC, and general purpose pumping. Design minimizes thrust loads, allowing for continuous operation without damage to motor bearings, mechanical seal, or pump hydraulic components. Stainless steel shaft, Buna-N O-Rings, heavy duty ball bearings. Maximum suction lift of 15 feet.

Features

Proven SignaSeal staging system utilizes a ceramic wear surface that dominates with 1st-in-class performance.
Superior sand-handling and thrust management staging system
Precision-molded acetal impellers for perfect balance. Ultra-smooth for highest performance and efficiency
Precision-molded diffusers offer superior performance with high resistance to corrosion and abrasion
Precision lapped and highly polished carbon-ceramic mechanical shaft seal with stainless steel parts guarantees continuous water lubrication
Superior motor winding insulation materials protect against excessive moisture and contaminants assuring prolonged motor life
Precision rotor is die-cast under high pressures for uniform performance and greater efficiency
All electrical components are protected from dirt, dust, and insects by a dustproof canopy which the ventilating air cannot contaminate

Specifications

Horsepower: 3 HP
Maximum Flow: 20 GPM
Maximum Inlet Pressure: 80 PSI
Maximum Working Pressure: 315 PSI
Voltage: 208-230/460
Phase: Three
Inlet Port: 1"
Outlet Port: 1"
